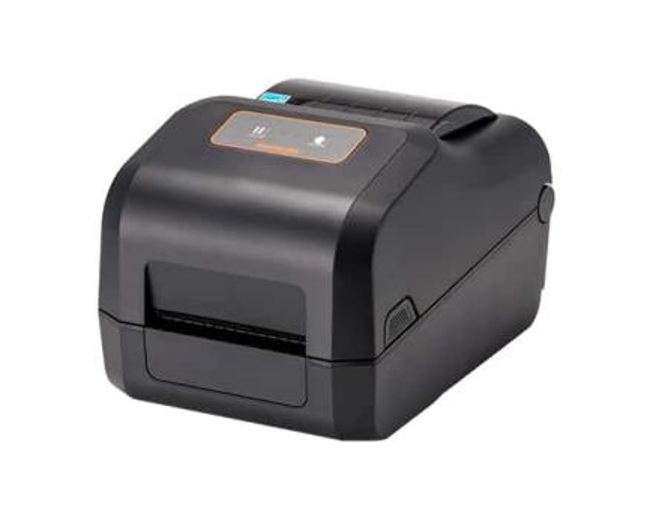

Bixolon XD5-40T Label Printer
The Bixolon XD5‑40T Label Printer is a heavy‑duty industrial thermal transfer printer built to handle high‑volume, professional label printing. Engineered for demanding environments such as manufacturing floors, warehouses, logistics, distribution, retail back‑of‑store, and healthcare operations, this 4‑inch industrial printer delivers durable, long‑lasting labels with exceptional speed and precision.
With thermal transfer technology, the XD5‑40T produces fade‑resistant, high‑quality output that stands up to harsh conditions, making it ideal for barcode labels, asset tags, shipping labels, product identification, and compliance labeling. Its rugged design, flexible media support, and user‑friendly operation help streamline workflows and keep your labeling tasks running smoothly.
Key Features
Industrial Thermal Transfer Printing – Produces durable, long‑lasting labels
Fast Print Speed – Up to 7 ips (178 mm/sec) for high‑volume printing
4‑Inch Print Width – Supports a wide range of label sizes
Rugged Industrial Design – Built for daily heavy use
Versatile Media Handling – Works with thermal transfer ribbons and direct thermal stock
Easy Media Loading – Intuitive front‑loading design for quick roll changes
Flexible Connectivity – USB and Serial standard; optional Ethernet, Bluetooth, and WLAN available
Reliable Operation – Designed for consistent performance in industrial environments
Technical Specifications
| Feature | Specification |
|---|---|
| Model | Bixolon XD5‑40T |
| Print Method | Thermal Transfer / Direct Thermal |
| Print Resolution | 203 dpi |
| Maximum Print Speed | Up to 7 ips (178 mm/sec) |
| Maximum Print Width | 104 mm (4.1″) |
| Media Width | 20 mm – 110 mm |
| Media Roll Diameter | Up to 127 mm |
| Ribbon Types Supported | Wax, Wax‑Resin, Resin |
| Ribbon Width | 25 mm – 110 mm |
| Ribbon Length | Up to 450 m (model dependent) |
| Memory | 128 MB SDRAM / 128 MB Flash |
| Interfaces (Standard) | USB 2.0, Serial |
| Optional Interfaces | Ethernet (LAN), Bluetooth, WLAN |
| Sensors | Transmissive, Reflective, Head Open |
| Power Supply | External Adapter (100–240 V AC) |
| Operating Temperature | 5 °C – 40 °C |
| Operating Humidity | 10 % – 80 % RH |
| Dimensions (W × D × H) | Approx. 275 × 375 × 290 mm |
| Weight | Approx. 8–9 kg |
| Ideal For | Warehousing, Manufacturing, Logistics, Retail, Healthcare |
Ideal For
The Bixolon XD5‑40T Label Printer is ideal for high‑volume industrial label printing where durability, speed, and professional quality are essential. Perfect for warehouses, production lines, logistics departments, and retail operations that require dependable industrial label output.
4-inch Label Printer
• Direct/ Thermal transfer printer,
• Standard: USB + USB Host
• Speed Up to 6 ips (152 mm/sec)
• Standard memory: 64 MB SDRAM, 128 MB Flash
• Media width 15 ~ 118 mm, Roll diameter Up to 127 mm
• Ribbon width 33 ~ 110 mm, length 300M & core 25.4mm
