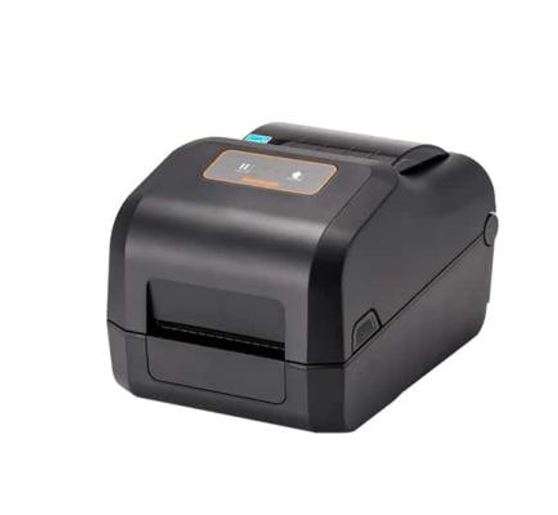

Bixolon XD5-40D Label Printer
The Bixolon XD5‑40D Label Printer is a fast, reliable 4‑inch direct thermal label printer designed for retail, warehousing, logistics, shipping, healthcare, and general business applications. With a print speed of up to 7 ips (178 mm/sec) and 203 dpi resolution, it produces sharp barcodes, text, and graphics for a wide range of labeling needs.
Featuring direct thermal technology — which eliminates the need for ribbons — this printer reduces operating costs while delivering consistent, quality results. Its compact and durable design, easy media loading, and versatile connectivity make it a smart choice for busy workspaces and POS environments. The XD5‑40D replaces the older DX420 model with improved performance and usability.
Key Features
Direct Thermal Printing — No ink or ribbon required
Fast Print Speed — Up to 7 inches per second (178 mm/sec)
High Print Quality — 203 dpi resolution
Flexible Media — Supports media widths from 15 mm to 118 mm
Roll Diameter — Up to 127 mm
Memory — Standard 64 MB SDRAM & 128 MB Flash
Connectivity — Standard USB + USB Host
Reliable Performance — Solid build quality and dependable output
Easy to Use — Intuitive design and quick media loading
Technical Specifications
| Feature | Specification |
|---|---|
| Model | Bixolon XD5‑40D |
| Print Method | Direct Thermal |
| Print Resolution | 203 dpi |
| Maximum Print Speed | Up to 7 ips (178 mm/sec) |
| Maximum Print Width | Up to 118 mm |
| Media Width | 15 mm – 118 mm |
| Media Roll Diameter | Up to 127 mm |
| Memory | 64 MB SDRAM / 128 MB Flash |
| Standard Interfaces | USB 2.0 + USB Host |
| Optional Interfaces | Ethernet (LAN), Bluetooth, WLAN (model dependent) |
| Media Types | Gap, Black Mark, Continuous, Tag Stock |
| Sensors | Transmissive, Reflective, Head Open |
| Power Supply | External Adapter (100–240 V AC) |
| Operating Temperature | 5 °C – 40 °C |
| Operating Humidity | 10 % – 80 % RH |
| Dimensions (W × D × H) | Approx. 221 × 251 × 175 mm |
| Weight | Approx. 2.6 kg |
Ideal For
Retail point‑of‑sale environments, warehouses, shipping and logistics operations, healthcare facilities, and any business requiring high‑quality, dependable label printing with a compact footprint.
The Bixolon XD5‑40D Label Printer offers powerful performance, ease of use, and versatile connectivity to meet your daily labeling needs.
4-inch Label Printer
• Direct thermal printer,
• Speed 7 ips (178 mm/ sec), 203 dpi
• Media width 15~118 mm, roll diameter up to 127mm
• Memory STD: 64 MB SDRAM, 128 MB Flash
• Standard: USB +USB Host
