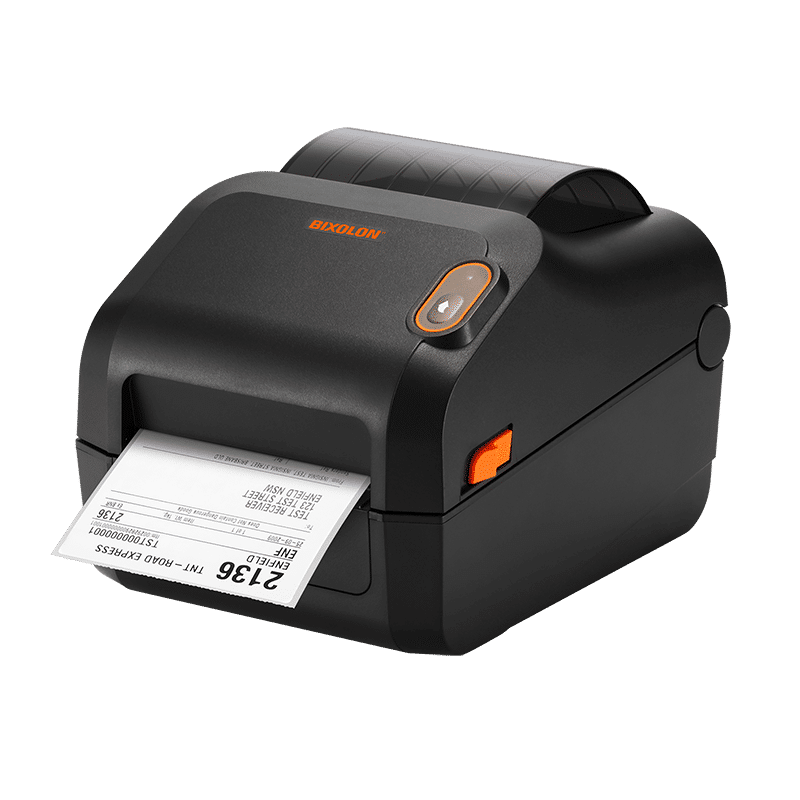

Bixolon XD3-40d Direct Thermal Label Printer
The Bixolon XD3-40d is a reliable 4-inch Direct Thermal Label Printer designed for fast, consistent label printing in demanding business environments. Ideal for retail, logistics, warehousing, manufacturing, and healthcare applications, this compact desktop printer delivers sharp 203 dpi output for text, barcodes, and graphics.
With easy media loading, intuitive operation, and tool-free maintenance, the XD3-40d minimizes downtime while maximizing productivity. Its broad media compatibility and support for multiple printer command languages make it easy to integrate into existing systems, offering a cost-effective and dependable solution for everyday labeling tasks.
Key Features
4-inch Direct Thermal printing (no ribbon required)
203 dpi resolution for clear text and barcodes
Fast print speed up to 5 inches per second
Compact, space-saving desktop design
Easy drop-in media loading with adjustable guides
Tool-free print head and platen replacement
LED indicator and simple button operation
Supports multiple printer languages for easy system integration
Optional peeler and external media holder available
Suitable for continuous, gap, black mark, and fan-fold media
Technical Specifications
Printing
Print Method: Direct Thermal
Resolution: 203 dpi
Print Speed: Up to 127 mm/sec (5 ips)
Maximum Print Width: Approx. 104 mm (4 inches)
Maximum Print Length: Up to 1,000 mm
Media Handling
Media Types: Gap, black mark, notch, continuous, fan-fold
Media Width: 15 – 118 mm
Maximum Roll Diameter: Up to 127 mm
Media Core Diameter: 25.4 mm or 38.1 mm
Connectivity & Memory
Standard Interface: USB
Optional Interfaces: USB + Serial, USB + Ethernet
Memory: 64 MB SDRAM / 128 MB Flash
Physical Characteristics
Dimensions: 181 × 222 × 168 mm
Weight: Approx. 1.7 kg
Power Supply: External AC adapter (100–240V, 50/60Hz)
Environmental
Operating Temperature: 0°C to 40°C
Operating Humidity: 10% – 80% RH (non-condensing)
Fonts & Barcodes
Supports bitmap and scalable fonts with Unicode
1D Barcodes: Code 39, Code 128, EAN, UPC, ITF, Codabar and more
2D Barcodes: QR Code, PDF417, Data Matrix
Typical Applications
Retail price and shelf labels
Shipping and logistics labels
Warehouse and inventory labeling
Manufacturing and product identification
Healthcare and laboratory labeling
