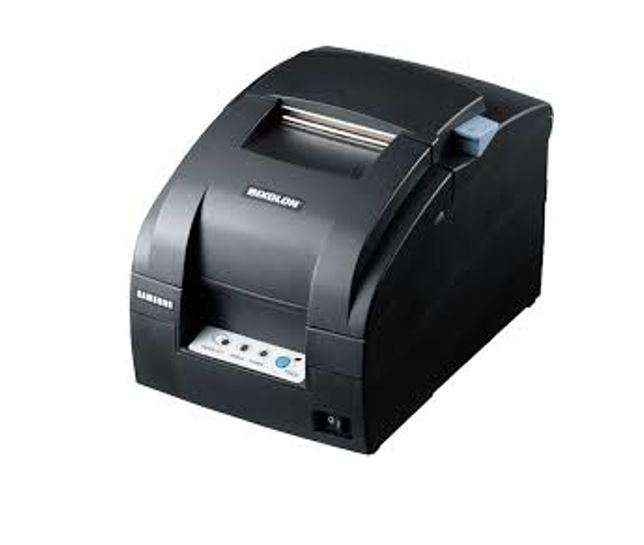

Bixolon SRP 275 Impact-Dotmatrix Desktop Receipt Printer
The Bixolon SRP 275 Impact-Dotmatrix Desktop Receipt Printer is a rugged and reliable 9-pin dot matrix printer designed for retail, hospitality, kitchens, and POS environments. Its robust construction delivers durable, long-lasting receipts that can withstand heat, moisture, and heavy handling.
With a print speed of up to 5.1 lines per second, two-color printing (black and red), and a convenient drop-in paper loading system, the SRP 275 ensures smooth, uninterrupted operations. Multiple interfaces including USB, Serial, Parallel, and Ethernet make integration simple across a variety of POS systems.
Perfect for receipts, invoices, kitchen orders, and multipart forms, the Bixolon SRP 275 offers reliable, low-maintenance performance for businesses that require consistency and durability.
Key Features
9-Pin Impact Dot Matrix Printing – reliable and long-lasting
Print speed up to 5.1 lines per second
Two-color output (black and red)
Easy drop-in paper loading for minimal downtime
Multiple interface options: USB, Serial, Parallel, Ethernet
Supports multipart and carbon-copy printing
Compact and robust design for high-volume environments
Long print head life and low maintenance
Technical Specifications
| Specification | Details |
|---|---|
| Model | Bixolon SRP 275 |
| Print Method | 9-Pin Impact Dot Matrix |
| Print Speed | Up to 5.1 lines/sec (40 columns) |
| Print Resolution | 80 dpi (H) × 144 dpi (V) |
| Paper Width | 76 ± 0.5 mm |
| Max Roll Diameter | ~83 mm |
| Character Columns | Font A: 35 / Font B: 40 |
| Memory | NV Image Memory 256 KB / Buffer 8 KB |
| Interfaces | USB, Serial, Parallel, Ethernet (model dependent) |
| Emulation | ESC/POS compatible |
| Sensors | Paper End, Paper Near End, Cover Open |
| Power Supply | Internal SMPS, 100–240 VAC |
| Dimensions (W×D×H) | 160 × 239 × 157 mm |
| Weight | ~2.4 kg |
| Operating Temperature | 0°C – 45°C |
| Operating Humidity | 10% – 80% RH |
What’s in the Box
Bixolon SRP 275 Desktop Receipt Printer
Power Cable & Adapter
Ribbon Cartridge
Sample Paper Roll
Interface Cable (depends on model)
• 9 Pin serial, 5 Lines/sec,
• Horizontal Vertical resolution: 80dpi x 144dpi,
• Paper width 76mm, Paper roll diameter max 83mm.
