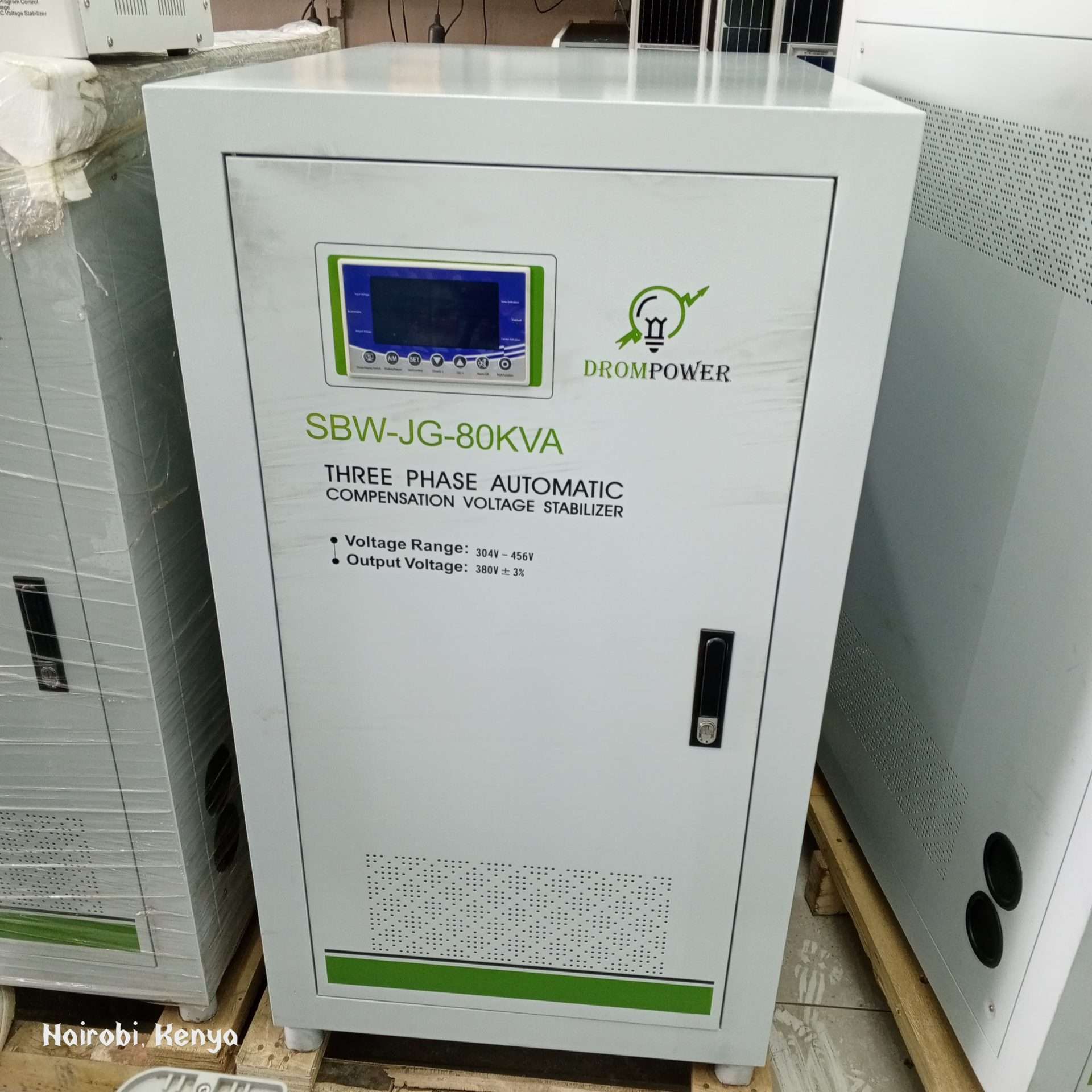

Automatic AC Voltage Stabilizer 3 Phase 80KW
The Automatic AC Voltage Stabilizer 3 Phase 80KW is a heavy-duty power regulation solution designed for large industrial and commercial applications. It delivers fast, precise, and balanced voltage stabilization across all three phases, ensuring continuous and reliable power supply in environments with frequent voltage fluctuations.
Built with advanced automatic compensation technology, this stabilizer protects high-value equipment from over-voltage, under-voltage, phase imbalance, and sudden power disturbances. Its robust metal cabinet, intelligent monitoring system, and efficient forced-air cooling make it ideal for factories, data centers, hospitals, shopping malls, and large commercial facilities.
Key Features
Three phase automatic voltage regulation
High-capacity 80KW rating for heavy industrial loads
Stable and balanced output voltage across all phases
Protection against over-voltage, under-voltage, and phase imbalance
Fast response time for real-time voltage correction
Digital display for input/output voltage monitoring
Heavy-duty metal enclosure with forced air cooling
Designed for continuous, long-term operation
Specifications
Product Type: Automatic AC Voltage Stabilizer
Phase: Three Phase
Rated Capacity: 80KW
Input Voltage Range: 304V – 456V AC (Line-to-Line, typical)
Output Voltage: 380V ± 3%
Frequency: 50/60Hz
Efficiency: ≥ 95%
Response Time: ≤ 1 second
Control Type: Automatic compensation
Protection Functions:
Over-voltage protection
Under-voltage protection
Overload protection
Phase failure & phase sequence protection
Short circuit protection
Display: Digital LED/LCD display
Cooling Method: Forced air cooling
Mounting Type: Floor standing
Operating Temperature: -5°C to +45°C
Enclosure: Powder-coated heavy-duty metal cabinet
Color: White / Grey
Applications
Heavy industrial machinery and production lines
Commercial complexes and shopping malls
Hospitals and diagnostic equipment
Data centers and server rooms
Elevators, HVAC systems, and water pumps
What’s in the Box
1 × Automatic AC Voltage Stabilizer 3 Phase 80KW
