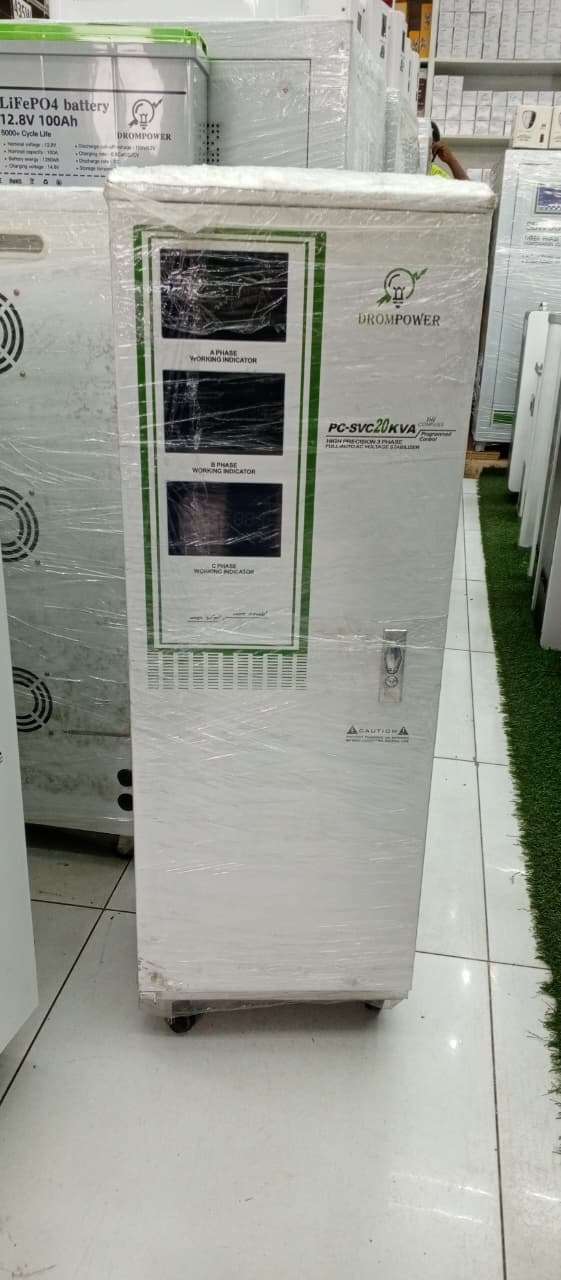

Automatic AC Voltage Stabilizer 3 Phase 20KW
The Automatic AC Voltage Stabilizer 3 Phase 20KW is a heavy-duty power regulation solution designed to deliver stable and reliable three-phase voltage for commercial and industrial electrical systems. It automatically compensates for voltage fluctuations, ensuring connected equipment receives a consistent power supply while protecting against over-voltage, under-voltage, surges, and power instability.
Key attributes of this stabilizer include advanced protection features like over-voltage, under-voltage, and overload safeguards. These protective mechanisms are essential for shielding equipment from extreme voltage conditions and excessive loads, which can lead to significant damage. Additionally, the stabilizer is equipped with a delay function that temporarily suspends power before re-engaging, protecting connected devices from sudden voltage spikes upon restoration after a power outage.
Constructed with high-grade materials, the Automatic AC Voltage Stabilizer 3 Phase 20KW is built for long-term durability and reliable performance. Its robust design can endure harsh environmental conditions, guaranteeing consistent operation over time. Additionally, the stabilizer is energy-efficient, minimizing power consumption during operation and contributing to lower electricity costs.
Key Features
- Three-phase automatic voltage stabilizer
- Rated power capacity: 20KW
- Servo motor-controlled voltage regulation
- Wide input voltage operating range
- Stable output voltage with high accuracy
- Digital LED input/output voltage display
- Fast response to voltage fluctuations
- Over-voltage protection
- Under-voltage protection
- Overload protection
- Short-circuit protection
- Over-temperature protection
- High operating efficiency
- Durable powder-coated steel cabinet
- Designed for continuous industrial and commercial use
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Automatic AC Voltage Stabilizer |
| Phase | Three Phase |
| Rated Capacity | 20KW |
| Input Voltage | 304V–456V AC (Typical) |
| Output Voltage | 380V AC ±3% |
| Frequency | 50Hz / 60Hz |
| Voltage Regulation | Servo Motor Controlled |
| Voltage Accuracy | ±3% |
| Efficiency | ≥98% |
| Response Time | Less than 1 second |
| Cooling Method | Natural Air Cooling / Forced Fan |
| Protection Features | Over-voltage, Under-voltage, Overload, Short Circuit, Over-temperature |
| Display | Digital LED Voltage Meter |
| Enclosure | Powder-Coated Steel |
| Insulation Class | Class F |
| Operating Temperature | -10°C to +40°C |
| Installation | Floor Standing |
| Application | Industrial & Commercial Power Systems |
Applications
- Manufacturing plants
- Industrial machinery
- Hospitals and medical facilities
- Hotels
- Commercial office buildings
- Data centers
- Telecommunications equipment
- HVAC systems
- Pumps and compressors
- Laboratories
- Educational institutions
- Large workshops
Package Includes
- 1 × Automatic AC Voltage Stabilizer 3 Phase 20KW
- User Manual
- Installation Accessories
