Automatic AC Voltage Stabilizer Single Phase 5 KW
Automatic AC Voltage Stabilizer Single Phase 5 KW.

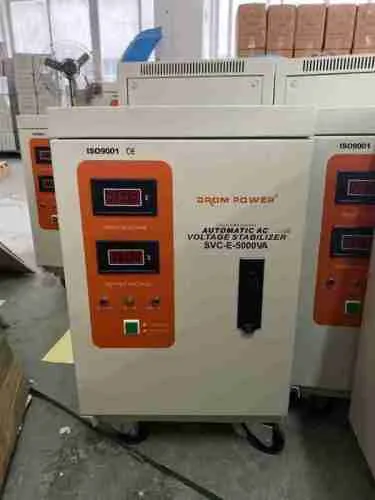

Automatic AC Digital Voltage Stabilizer SVC-E-5000VA
Operating principle
SVC Single-phase high accuracy full automatic AC voltage stabilizers is made of regulator, servo motor, automatic control circuit and so in, When the voltage of the network is not steady or the load varies, the automatic sampling control circuit makes a signal to drive the servomotor to adjust the postion of the carbon brush of the regulator so as to have the output voltage regulated to the rating and to obtain the steady state.
Product advantages
Small volume, light weigh, undistorted waveform, high efficiency, reliable performance, and time-delay, over-voltage, etc.
Product warranty
Our products are of superior quality and have fine workmanship. Most of products use imported parts,every product must be inspected many times before it is exported.
Application
Technical Index
| Input voltage | 160-250V |
| Output voltage | 220±3% 110±4% |
| Phase | single-phase |
| Frequency | 50-60HZ |
| Adjusting time | <1S (When input voltage has a change of 10%) |
| Max of | 0.5KVA 1KVA 1.5KVA 2KVA 3KVA 5KVA 8KVA 10KVA 15KVA 20KVA 30KVA |
| Output current | 2A 4A 6.5A 8A 12A 20A 32A 40A 60A 80A 120A |
| Protection over voltage | 245±5V |
| Delay | Short Delay 3-7sec long Delay 3-7min |
| Ambient temperature | -5~+40°C |
| Temperature rise | <60°C (full load) |
| Relative humidity | <90°C |
| Wave form distortion | No additional wave form distortion |
| Efficiency | >95% |
| Insulation resistance | ≥2MΩ |
•Specifications and Model
| Model | Unit | Package size(cm) | Weight(kg) |
| 500VA | 4 | 22×20.5×16.3 | 6 |
| 1000VA | 4 | 26.5×23.7×18 | 7.5 |
| 2000VA | 2 | 32×29.2×21.8 | 12.5 |
| 3000VA | 2 | 34.5×29×26 | 15 |
| 5000VA | 1 | 54×29.5×30.5 | 25 |
| 10000VA | 1 | 34.5×29.5×54 | 46 |
| 15000VA | 1 | 36×34×66 | 60 |
| 20000VA | 1 | 49.2×41×87 | 75 |
| 30000VA | 1 | 49.2×41×87 | 90 |
