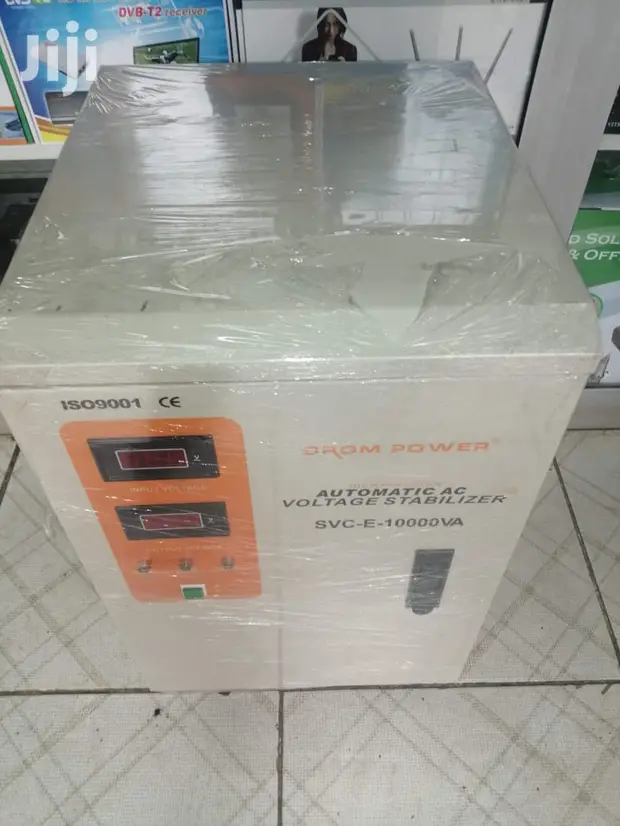

The automatic Ac digital voltage stabilizer SVC series single phase servo type high accuracy full automatic AC voltage regulator adopts the international advanced technology and intelligent CPU centralized control technology. It has beautiful design,easy to moving,large capacity, etc. which is composed of servo motor, control circuit and compensator. All products have over voltage, delay, temperature and error production and also voltage two-way indication, which make the function of the product more perfect and reliable. The stabilizer widely used in the household, industrial and agricultural production etc.
Key Features
- Automatic voltage regulation for stable output power
- High-capacity 10 kVA single-phase design
- Protects against over-voltage, under-voltage, and power surges
- Suitable for heavy-duty home and commercial use
- Fast response time for voltage correction
- Built-in overload and short-circuit protection
- Ideal for sensitive electronics and high-power appliances
- Reliable continuous operation for unstable power environments
- Durable metal housing for long-term use
- Easy installation and low maintenance
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Automatic Voltage Stabilizer |
| Phase | Single Phase |
| Capacity | 10 kVA |
| Input Voltage Range | Typically 140V – 260V (varies by model) |
| Output Voltage | 220V / 230V ± regulated |
| Regulation Type | Automatic / Servo or Relay Type |
| Frequency | 50Hz / 60Hz |
| Protection | Over-voltage, under-voltage, overload, short circuit |
| Response Time | < 1 second (typical) |
| Efficiency | >90% |
| Display | LED/LCD (model dependent) |
| Cooling System | Air-cooled |
| Enclosure | Heavy-duty metal cabinet |
| Application | Home, office, industrial equipment |
Advantage:
•Microprocessor control
•Stepless voltage regulation over a wide range
•The high output voltage accuracy (220V ±1.5%)
•Surge protection
•Protection against short circuit & overheating
•Differentiation and fault indication
•Informative meter display
•Modern design
•urge protection up to 300 V
•High speed regulation
•The multistage defense
Product Parameter :
| Model | SVC-10000VA |
| Power capacity | 10000W |
| Input voltage | AC 140-260V |
| Output voltage | 220V±1.5% |
| Phase | Single Phase |
| Frequency | 50-60Hz |
| Adjust time | 1 Second |
| Type of stabilization | Electromechanical |
| Display | Meter display |
| Protection over voltage | 250±2V |
| Protection lack voltage | 185±2V |
| Mode Bypass | Yes |
| Efficiency | 98% |
| Type of connection | Terminal block |
| Degree of protection | IP 20 |
| Delay | 3 second |
| Temperature protection | 110℃ ± 10℃ |
| Ambient Temperature | -10～+45℃ |
| Relative humidity | 80% |
| Waveform distortion | No additional wave form distortion |
| Dimension of device | 485*280*240mm(L*W*H) |
| Weight of device | 28.4Kg |
