APC Easy UPS On-Line Rackmount 3kVA SRV3KRILRK
The APC Easy UPS On-Line Rackmount 3kVA SRV3KRILRK is a high-performance, double-conversion on-line UPS designed to provide continuous and reliable power for critical servers, networking hardware, storage systems, and other sensitive equipment. Its 4U rackmount form factor with rail kit makes it ideal for professional IT environments such as data centers, telecom closets, and enterprise server rooms.
This UPS delivers pure sine wave output with zero transfer time and excellent voltage regulation — ensuring connected devices run uninterrupted even during power disturbances like brownouts, surges, and outages.
Key Features
True Double-Conversion On-Line Topology: Provides continuous AC-to-DC-to-AC conversion with no transfer delay when switching to battery, protecting sensitive equipment from unstable mains power.
3000 VA / 2400 W Power Capacity: Supports medium to heavy IT loads such as servers, network switches, storage arrays, and communication gear.
Rackmount Form Factor (4U) with Rail Kit: Easy installation in 19″ racks; includes rails and mounting hardware.
Pure Sine Wave Output: Clean, low-distortion power ideal for active PFC-equipped equipment.
Multiple Outlets: Typically 6 × IEC 320-C13 plus 1 × IEC 320-C19 for flexible power distribution.
Automatic & Manual Bypass: Maintains load power in case of UPS fault or during servicing.
ECO Mode: Energy-efficient mode that reduces operating costs when power quality is good.

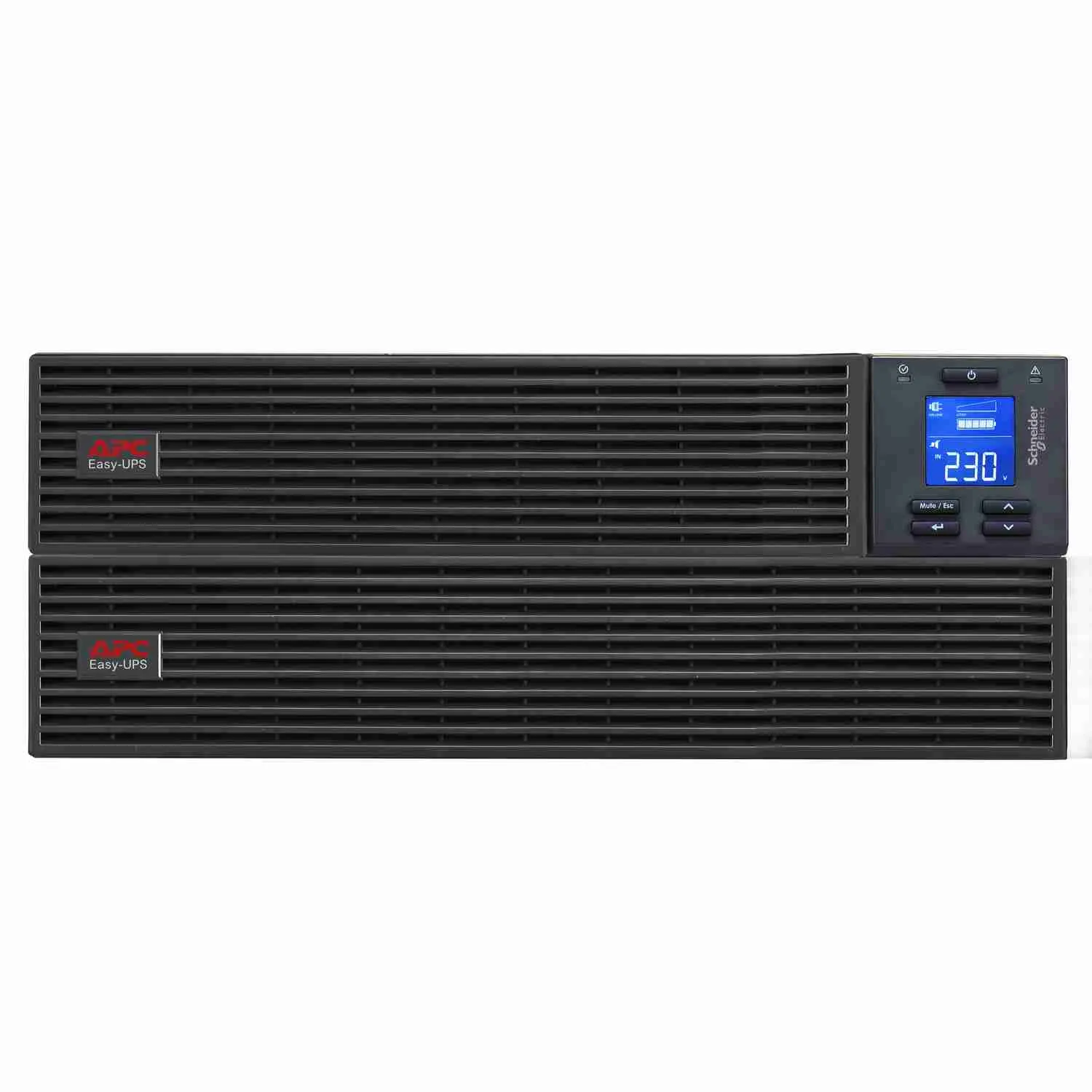

LCD/Multifunction Display: Clear status indication of load, battery, voltage and alarms.
Optional Monitoring: SmartSlot for APC network management cards (AP9544, SRVSMB001, VGL9601L) and compatibility with EcoStruxure IT / third-party systems.
Extendable Runtime: Supports external battery packs (e.g., SRV72RLBP-9A) for longer autonomy.
Lead-Acid Hot-Swappable Battery: Easy replacement and long service life.
Technical Specifications
| Specification | Details |
|---|---|
| Model | APC Easy UPS On-Line Rackmount 3kVA (SRV3KRILRK) |
| Topology | Double-Conversion On-Line |
| Power Capacity | 3000 VA / ~2400 W |
| Input Voltage | 230 V (wide input range) |
| Output Voltage | 230 V (configurable 220/230/240 V) |
| Waveform | Pure sine wave |
| Outlets | 6 × IEC C13 + 1 × IEC C19 |
| Form Factor | 4U Rackmount with rail kit |
| Bypass | Automatic & Manual |
| Battery Type | Lead-acid, hot-swappable |
| Display | LCD / Status indicators |
| Monitoring | USB/Serial + SmartSlot optional cards |
| ECO Mode | Yes |
| Extended Runtime Support | Yes (external battery packs) |
| Warranty | Typically 2 years (unit & battery) |
This UPS is perfect for:
✔ Small to medium data centers
✔ Server rooms and racks
✔ Network infrastructure closets
✔ Telecom equipment clusters
✔ Industrial IT systems requiring high uptime
