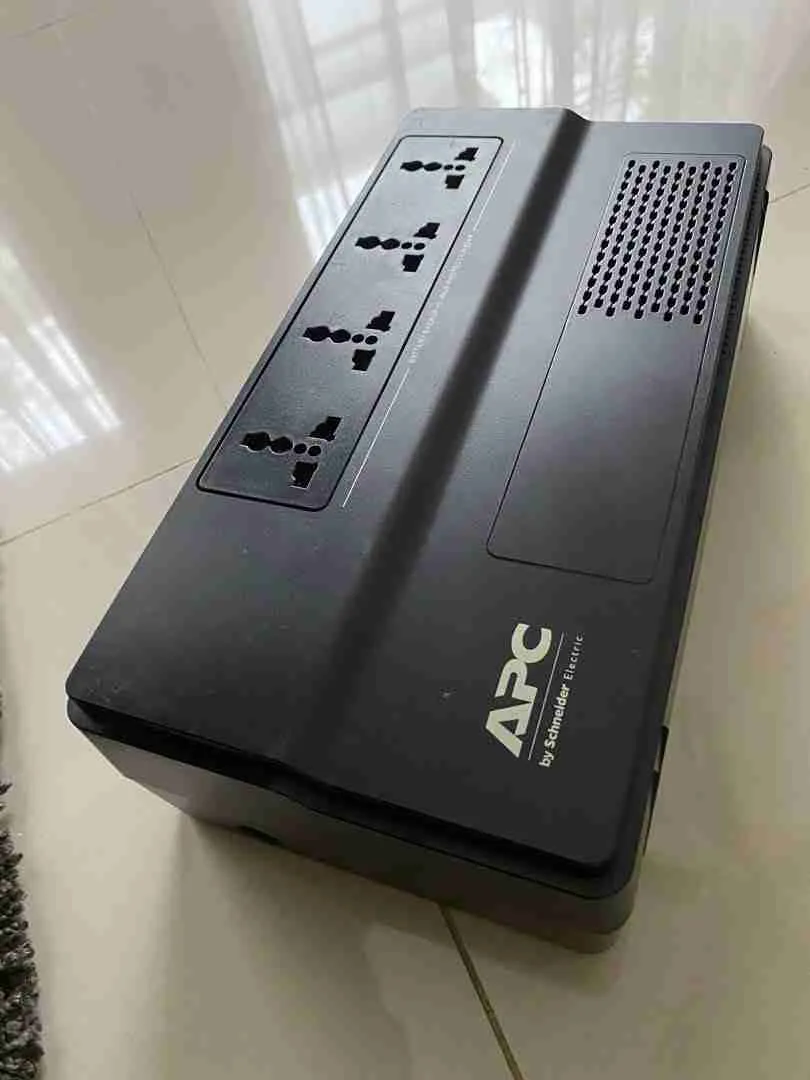

APC EASY UPS BV 650VA AVR Universal Outlet 230V
KSh12,000.00 Exc. Tax
APC EASY UPS BV 650VA AVR Universal Outlet 230V
APC EASY UPS BV 650VA AVR Universal Outlet 230V
BV650I-MS Features
Key Features
Run time for loadW
—
Max. Capacity Used
Output power capacity
375Watts / 650VA
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
NEMA 5-15P
Cord Length
1.2meters
APC EASY UPS BV 650VA, AVR, Universal Outlet, 230V
Best Value UPS with Battery Backup & Surge Protection for Electronics and Computers
Includes: User Manual
- Automatic Voltage Regulation (AVR)Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
- Wall-mount holesAllow flexibility for setup in tight locations and mounting on wall or other surfaces.
Easy UPS Features & Benefits
Protection
Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
Manageability
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Features
Sleek design
Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Cold-start capable
Provides temporary battery power when the utility power is out.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
Availability
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Advanced Safety Features
Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Technical Specifications
Output
Max Configurable Power (Watts)
375Watts / 650VA
Output Frequency (not synced)
50/60 Hz +/-1 Hz
Topology
Line Interactive
Waveform type
Stepped approximation to a sinewave
Transfer Time
6ms typical : 10ms maximum
Input
Input frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input voltage range for main operations
170 – 280V
Number of Power Cords
1
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
8hour(s)
Expected Battery Life (years)
3 – 5
Efficiency
Communications & Management
Control panel
LED Status display with On Line : On Battery
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
156Joules
Physical
Maximum Height
92MM, 9.25CM
Maximum Width
165MM, 16.5CM
Maximum Depth
305MM, 30.5CM
Net Weight
4.5KG
Shipping weight
4.8KG
Shipping Height
237MM, 23.7CM
Shipping Width
143MM, 14.3CM
Shipping Depth
373MM, 37.3CM
Color
Black
SCC Codes
1073130433833 5
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 90 %
Operating Elevation
0-2000.1meters
Storage Temperature
-20 – 50 °C
Storage Relative Humidity
0 – 90 %
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
40.0dBA
Protection Class
IP 20
Conformance
Approvals
CE
Standard warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
Documentation
Manuals and Warranties
SCHNEIDER ELECTRIC SAFETY GUIDE – EASY UPS BV/BVS/SRV/SRVS
Schneider Electric Safety Guides for Easy UPS SRV, SRVS, BV and BVS products only
PDF
120 KB
03/27/20
EASY UPS BV500I/650I/800I/1000I -GR/MS
User manual for Easy UPS BV500I, BV500I-GR, BV500I-MS, BV650I, BV650I-GR, BV650I-MS, BV800I, BV800I-GR, BV800I-MS, BV1000I, BV1000I-GR and BV1000I-MS 230 V
PDF
704 KB
03/10/20
EASY UPS BV500I/650I/800I/1000I -GR/MS
User manual for Easy UPS BV500I, BV500I-GR, BV500I-MS, BV650I, BV650I-GR, BV650I-MS, BV800I, BV800I-GR, BV800I-MS, BV1000I, BV1000I-GR and BV1000I-MS 230 V
PDF
704 KB
12/05/19
Brochure
Easy UPS BV 230V MS outlet brochure in Spanish
Easy UPS BV 230V MS outlet brochure in Spanis
PDF
488 KB
04/17/20
APC Easy UPS 1 Ph BV Series Brochure 230V
Product brochure for the Easy UPS 1 Ph BV Series
PDF
488 KB
04/08/20
Easy UPS BV 500I 650I 800I 1000I GR MS Brochure
Brochure for Easy UPS BV500I, BV500I-GR, BV500I-MS, BV650I, BV650I-GR, BV650I-MS, BV800I, BV800I-GR, BV800I-MS, BV1000I, BV1000I-GR and BV1000I-MS 230 V
PDF
488 KB
12/05/19
