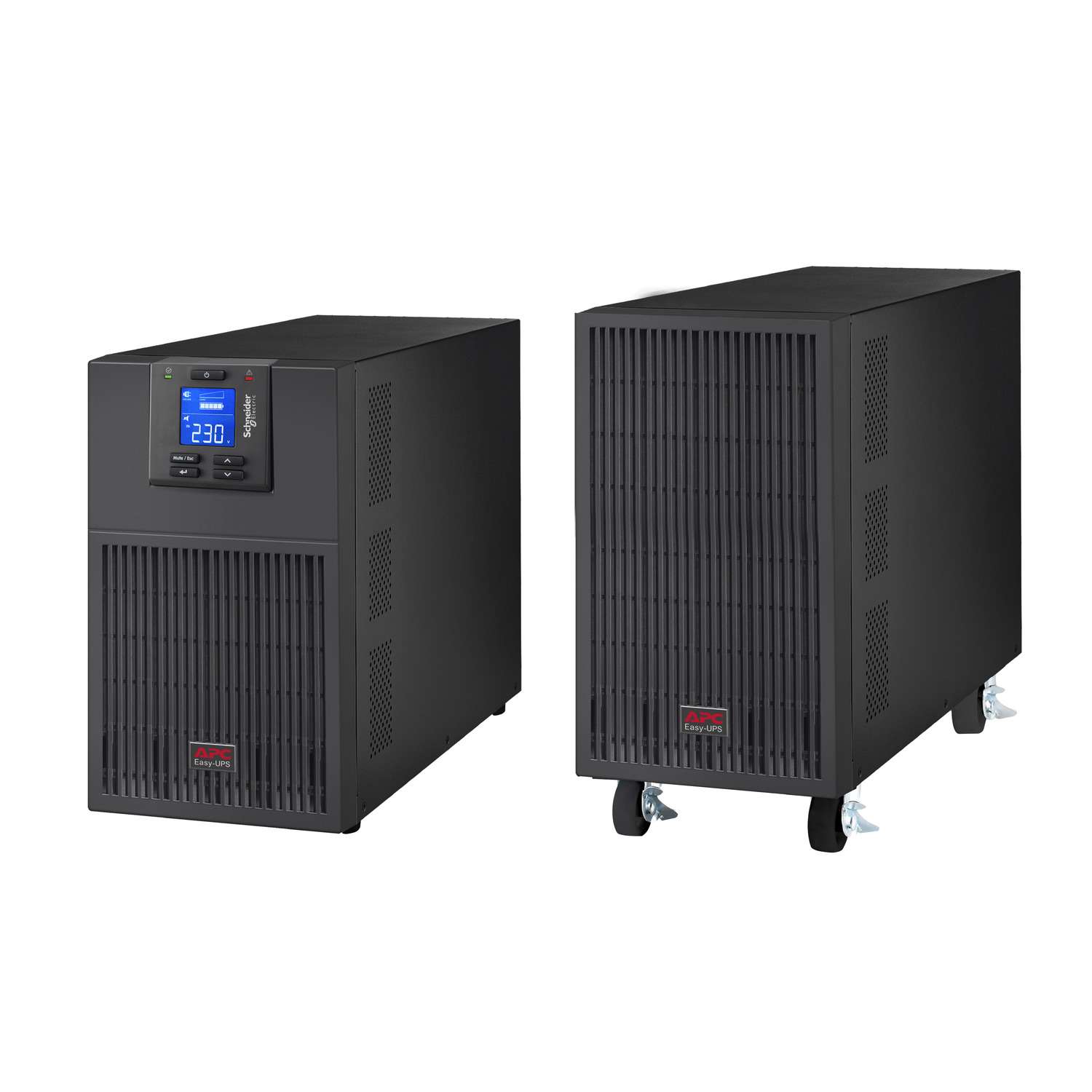

APC 6000VA Easy UPS On-Line SRV6KI 6000VA 230V
The APC Easy UPS On-Line SRV6KI 6000VA 230V is a high-performance double-conversion online UPS designed to provide uninterrupted, clean, and reliable power for mission-critical equipment. With a 6000VA / 6000W power capacity, this UPS safeguards servers, networking equipment, storage systems, telecommunications infrastructure, medical equipment, and industrial automation against power outages, voltage fluctuations, surges, and electrical noise.
Featuring true online double-conversion technology, the SRV6KI continuously conditions incoming power to deliver a pure sine wave output, ensuring maximum protection for sensitive electronics. The intuitive LCD display provides real-time system monitoring, while intelligent battery management optimizes battery performance and extends service life.
Ideal for data centers, server rooms, enterprise networks, financial institutions, healthcare facilities, and industrial environments, the APC SRV6KI offers dependable power protection with high efficiency, automatic bypass functionality, and advanced communication capabilities.
Technical Specifications
| Specification | Details |
|---|---|
| Model | APC SRV6KI |
| UPS Topology | Online Double Conversion |
| Power Capacity | 6000VA / 6000W |
| Nominal Input Voltage | 230V |
| Nominal Output Voltage | 230V |
| Configurable Output Voltages | 220V, 230V, 240V |
| Input Voltage Range | 110–300V (load dependent) |
| Input Frequency | 40–70 Hz |
| Output Frequency | 50/60 Hz |
| Waveform | Pure Sine Wave |
| Efficiency | Up to 94% |
| Crest Factor | 3:1 |
| Battery Type | Sealed Lead Acid (VRLA) |
| Battery Recharge Time | Approximately 3 Hours |
| Display | Multifunction LCD |
| Communication Ports | USB, RS-232 |
| Expansion Slot | SmartSlot |
| Emergency Power Off | Yes |
| Automatic Bypass | Yes |
| ECO Mode | Yes |
| Cooling | Active Fan Cooling |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 0–95% Non-condensing |
| Weight | Approximately 54–73 kg (configuration dependent) |
| Form Factor | Tower |
Key Features
- 6000VA / 6000W power capacity
- True online double-conversion UPS topology
- Pure sine wave output for sensitive equipment
- Wide input voltage range minimizes battery usage
- High operating efficiency with ECO Mode
- Intelligent battery management extends battery life
- Automatic and manual bypass for uninterrupted operation
- LCD display for status monitoring and configuration
- USB and RS-232 communication ports
- SmartSlot for optional network management card
- Emergency Power Off (EPO) support
- Automatic restart after utility power restoration
- Generator compatible
- Ideal for servers, networking equipment, storage, telecom, and industrial applications
