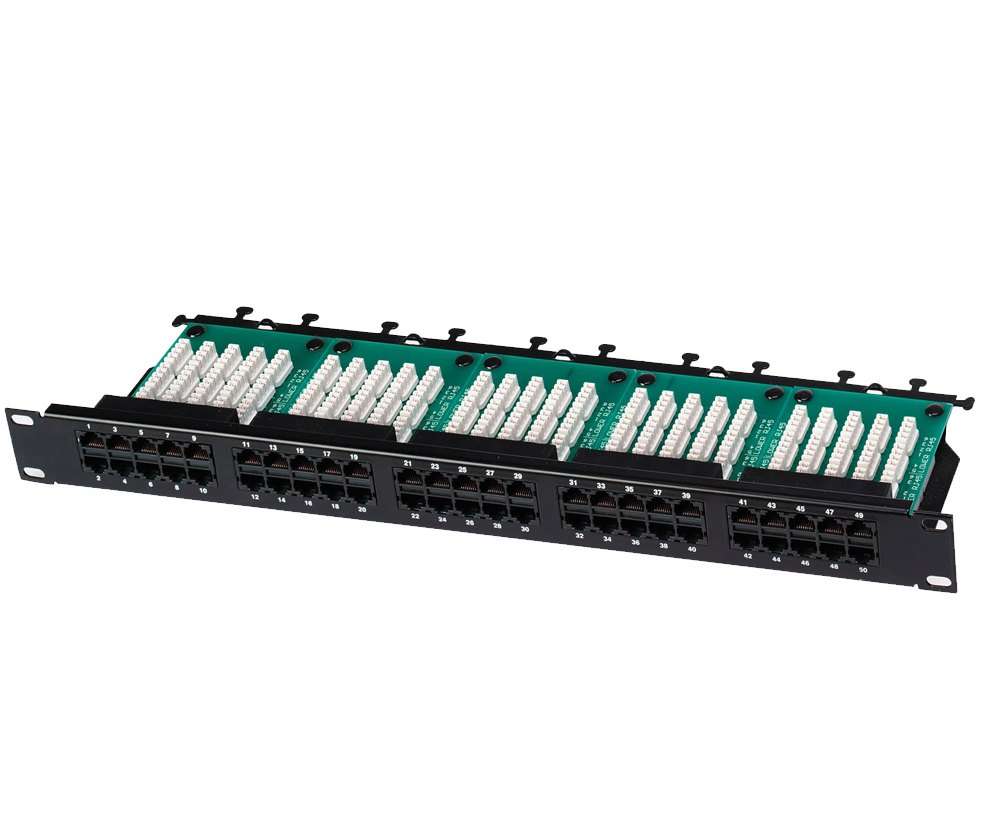

50 Port Voice Patch Panels
The 50 Port Voice Patch Panel is a high-capacity voice distribution panel designed for structured cabling systems in commercial, industrial, and enterprise environments. It provides a centralized and organized termination point for up to 50 telephone or voice lines, making it ideal for PBX/PABX systems, IP telephony, hotels, hospitals, schools, offices, and telecommunications rooms.
Built for 19-inch rack mounting, the patch panel features durable cold-rolled steel construction and clearly numbered ports for simplified cable identification and maintenance. IDC punch-down terminals provide secure cable termination while supporting industry-standard T568A and T568B wiring configurations.
Compatible with Cat5e, Cat6, and Cat6A cables for voice applications, this patch panel helps maintain a clean, organized, and professional voice cabling infrastructure.
Key Features
- 50 RJ45 voice ports
- Standard 19-inch rack mount design
- High-density voice cable management
- Supports PBX, PABX, VoIP, and telephone systems
- Compatible with Cat5e, Cat6, and Cat6A cabling
- IDC punch-down termination
- T568A/T568B wiring compatibility
- Clearly numbered ports for easy identification
- Heavy-duty steel construction
- Easy installation and maintenance
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | 50 Port Voice Patch Panel |
| Number of Ports | 50 RJ45 Ports |
| Port Type | RJ45 Female |
| Rack Standard | 19-inch Rack Mount |
| Rack Height | 2U (varies by manufacturer) |
| Termination | IDC Punch-Down |
| Wiring Standard | T568A / T568B |
| Cable Compatibility | Cat5e, Cat6, Cat6A (Voice Applications) |
| Housing Material | Cold-Rolled Steel |
| Finish | Black Powder-Coated |
| Port Identification | Numbered Ports |
| Mounting | Rack Mount |
| Operating Temperature | -10°C to +60°C |
| Compliance | ANSI/TIA/EIA Structured Cabling Standards |
Applications
- PBX and PABX telephone systems
- VoIP infrastructure
- Office telephone networks
- Hotels and hospitality
- Hospitals and healthcare facilities
- Educational institutions
- Government offices
- Call centers
- Data and telecommunications rooms
- Structured voice cabling systems
Package Contents
- 1 × 50 Port Voice Patch Panel
- Rack Mounting Hardware (where applicable)
- Installation Guide
Benefits
- Centralizes and organizes voice cabling
- Simplifies maintenance and troubleshooting
- Supports professional structured cabling installations
- Durable construction for long-term reliability
- Efficient rack space utilization
- Easy identification and management of voice connections
