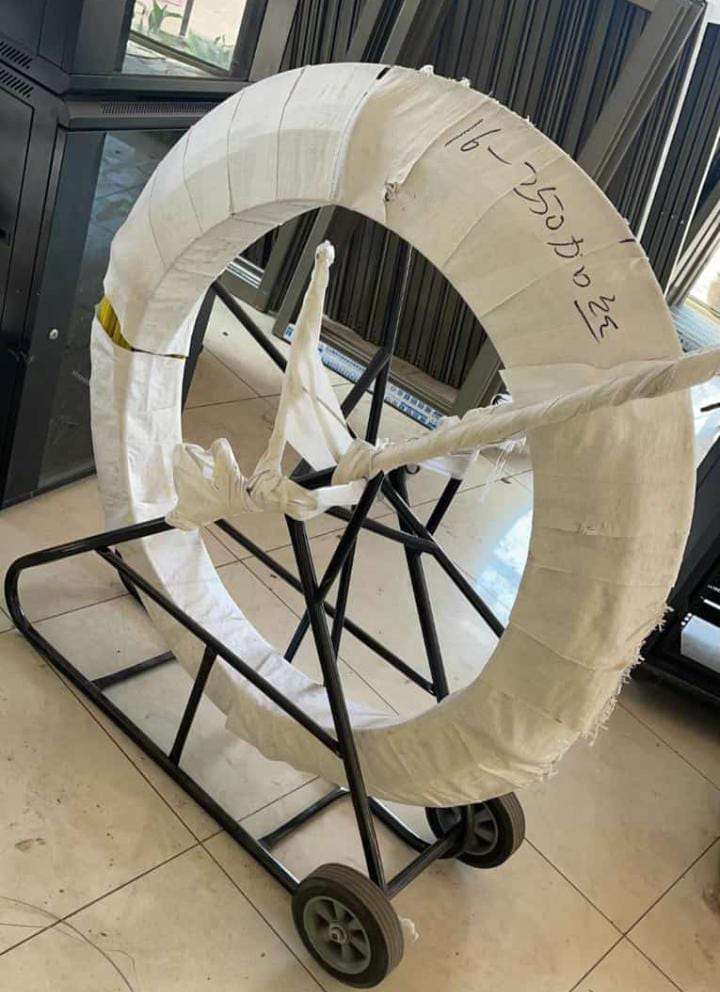

16mm 200m Underground Cable Push Pull Rods Fiberglass Duct Rodder
The 16mm 200m Underground Cable Push Pull Rods Fiberglass Duct Rodder is a heavy-duty cable installation tool designed for routing and pulling cables through underground ducts, conduits, pipes, trenches, and other difficult-to-access pathways. Made from durable fiberglass, the duct rod provides the stiffness needed to push through long cable routes while remaining flexible enough to navigate bends.
With a 16mm diameter and 200m length, this fiberglass duct rodder is suitable for telecommunications, fiber optic cable installation, electrical works, networking projects, and underground utility installations.
Product Description
Specification | Rod Diameter (mm) | 10mm |
Rod Length (m) | ||
Frame Spec. (mm) | 1300x450x1330 | |
Material | Fiber glass rod inner | Extruded by fiber glass and high strength resin at high temperature |
Fiber glass rod outer | High Density polyethylene coating | |
Metal Frame | Steel with high-temperature sprayed plastic or hot dip galvanized | |
Physical Property | Fiber glass content | 75-80% |
Density | > 1.9gr/cm3 | |
Working environment | -40 to +80 | |
Max. Pulling strength | 4000N +/-5% | |
Consistency of rod | 137gr/m | |
Flexural Modulus | > 46.500Mpa | |
Elongation at break | 2.5-3% | |
Min Bending Radius | 388mm |

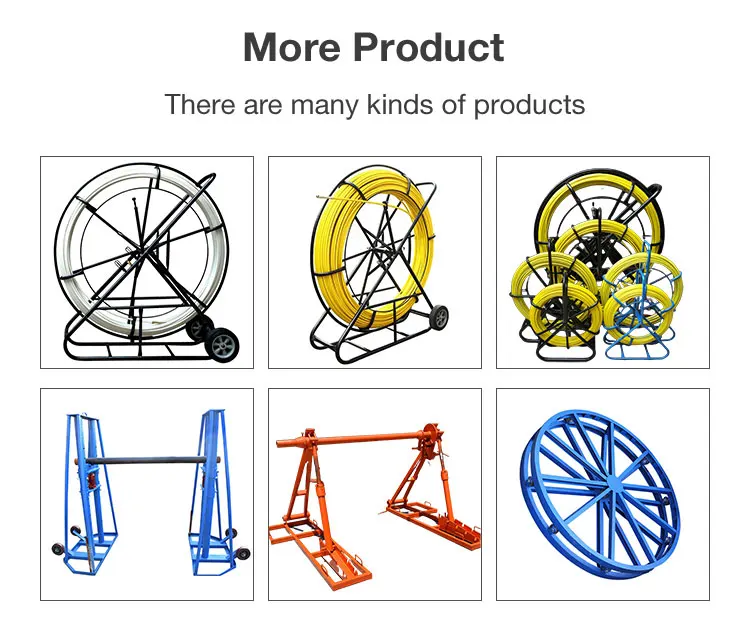

Recommend Products

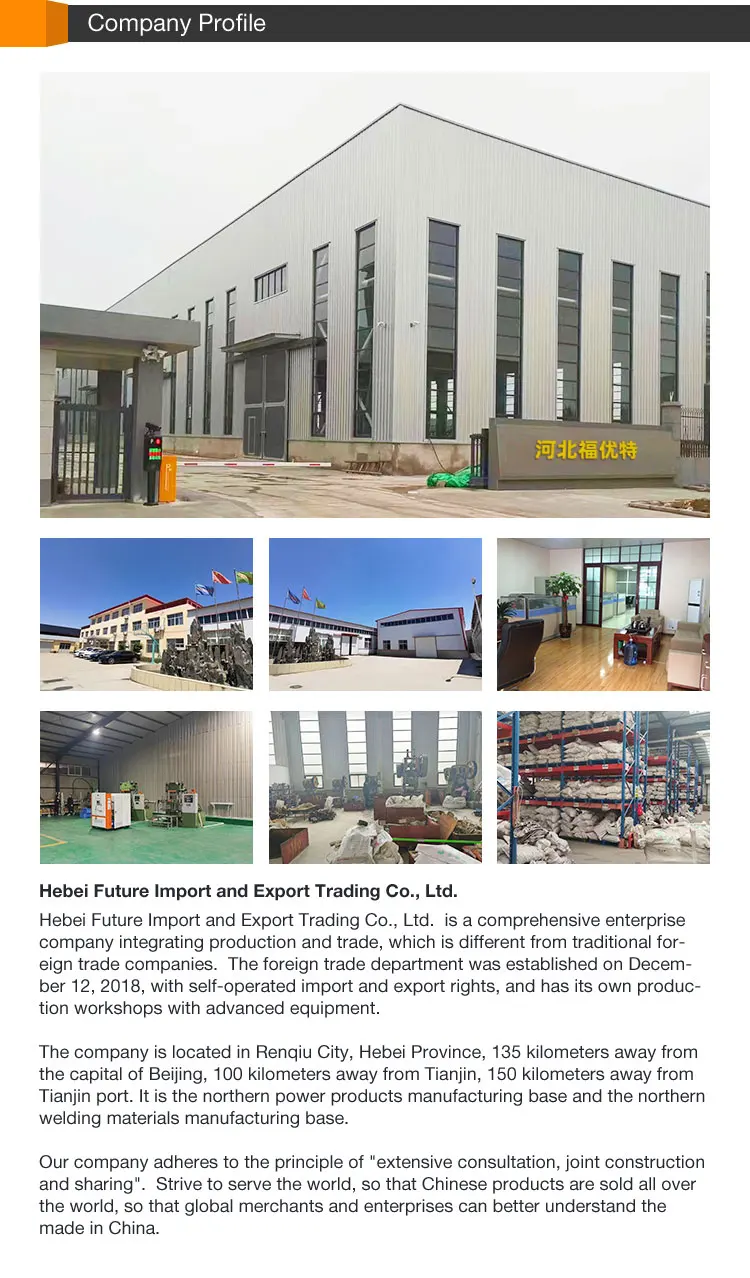

Company Profile
