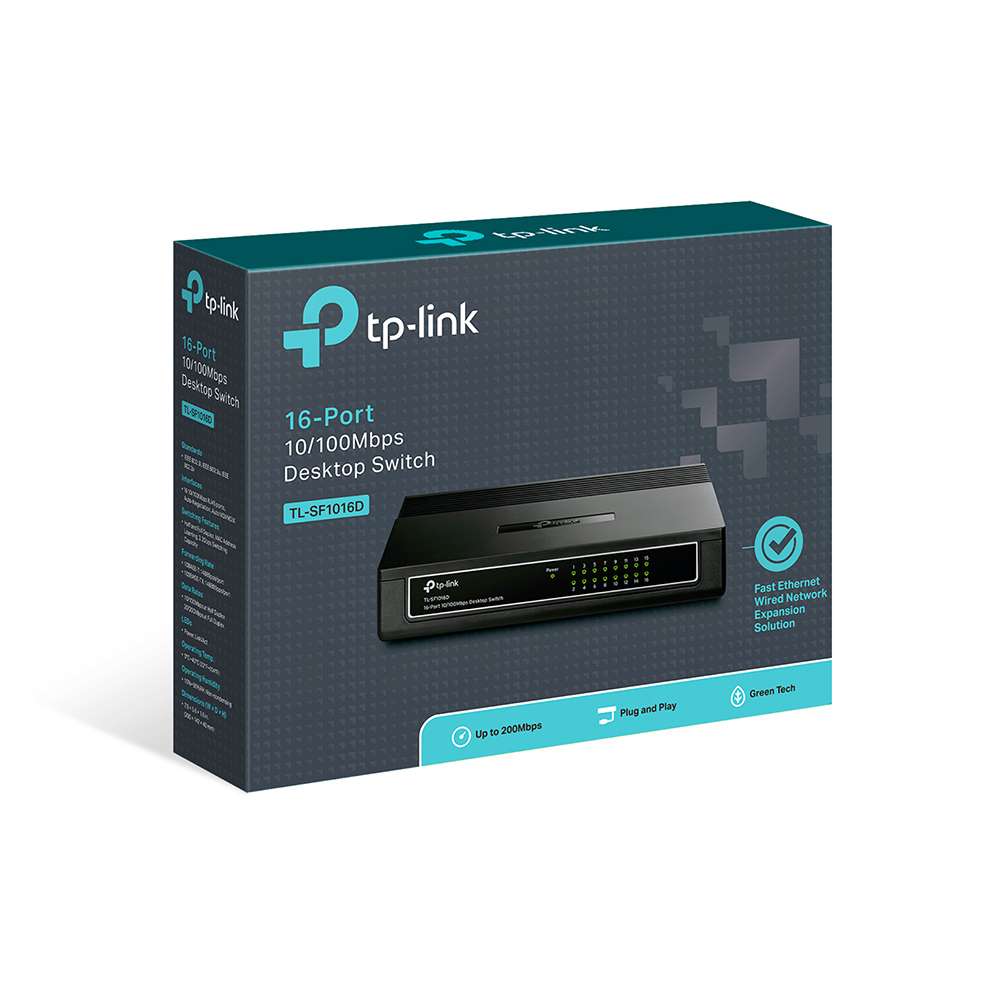

16-Port 10/100Mbps Desktop Switch TL-SF1016D
The TP-Link 16-Port 10/100Mbps Desktop Switch TL-SF1016D is a reliable and energy-efficient unmanaged Fast Ethernet switch designed to expand wired networks in homes, offices, schools, and small businesses. Featuring 16 auto-negotiating 10/100Mbps RJ45 ports, it provides seamless connectivity for computers, printers, IP cameras, network storage devices, and other Ethernet-enabled equipment.
With plug-and-play installation, the TP-Link TL-SF1016D requires no configuration, making deployment quick and easy. Auto MDI/MDIX eliminates the need for crossover cables, while IEEE 802.3x Flow Control ensures stable and reliable data transmission. The switch also incorporates Green Ethernet technology, reducing power consumption based on link status and cable length for improved energy efficiency. Its fanless design ensures silent operation, making it ideal for noise-sensitive environments.
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | TP-Link TL-SF1016D |
| Product Type | Unmanaged Fast Ethernet Desktop Switch |
| Ports | 16 × 10/100Mbps Auto-Negotiation RJ45 Ports |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Auto MDI/MDIX | Yes |
| Switching Capacity | 3.2 Gbps |
| Forwarding Rate | 2.38 Mpps |
| Forwarding Method | Store-and-Forward |
| MAC Address Table | 2K Entries |
| Flow Control | IEEE 802.3x (Full Duplex), Back Pressure (Half Duplex) |
| Auto Negotiation | Yes |
| LED Indicators | Power, Link/Activity |
| Power Supply | External Power Adapter |
| Maximum Power Consumption | Approx. 3.2W |
| Mounting Options | Desktop or Wall Mount |
| Cooling | Fanless |
| Dimensions | 200 × 142 × 40 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Certifications | CE, FCC, RoHS |
Key Features
- 16 Fast Ethernet 10/100Mbps RJ45 ports
- Plug-and-play operation with no configuration required
- Auto MDI/MDIX eliminates crossover cables
- IEEE 802.3x Flow Control for reliable data transmission
- Energy-saving Green Ethernet technology
- Silent fanless design
- Desktop or wall-mount installation
- Compact, durable plastic enclosure
- Ideal for home, office, classroom, and CCTV networking
The TL-SF1016D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play.
High Performance
TL-SF1016D Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1016D forwards and filters packets at full wire-speed for maximum throughput.
