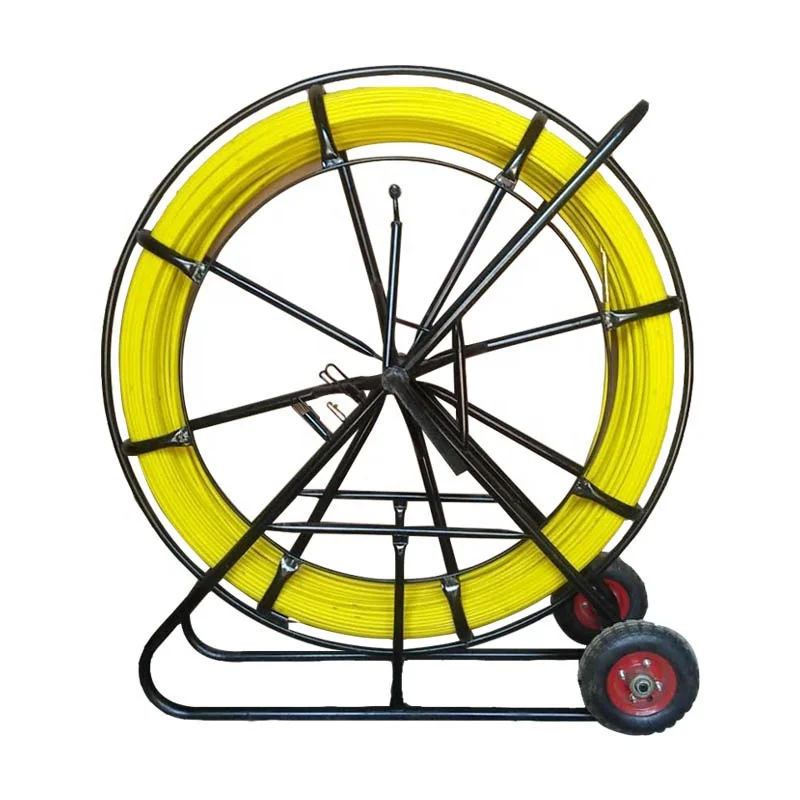

12mm Cable Duct Rodder with wheel 200M
The 12mm Cable Duct Rodder with Wheel 200M is a professional cable installation tool designed for pulling and guiding cables through underground ducts, conduits, pipelines, and cable trays. Built with a durable fiberglass core and a protective outer coating, it offers excellent flexibility, high tensile strength, and reliable performance in demanding installation environments.

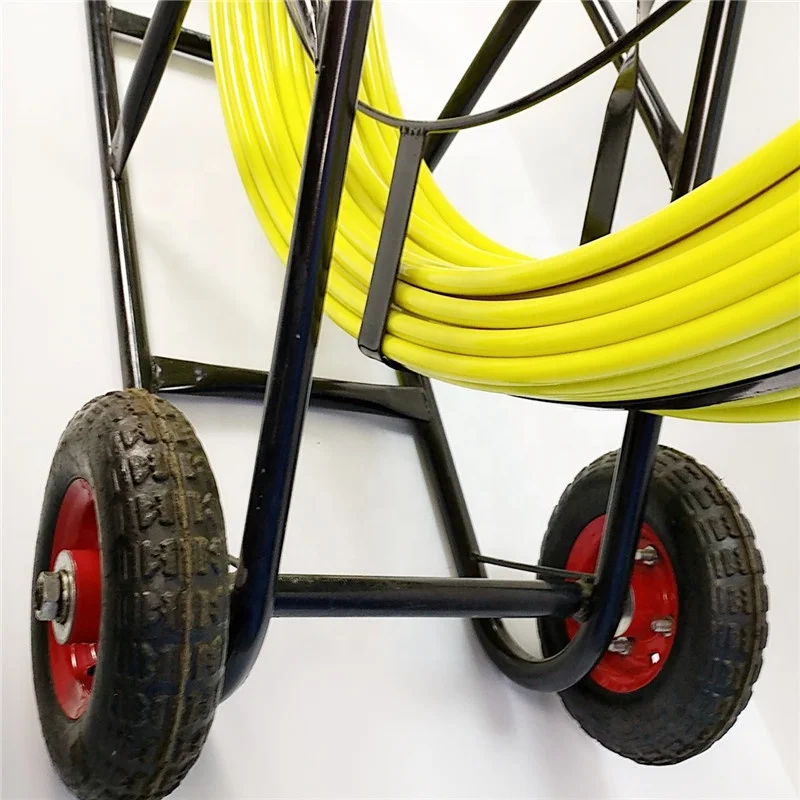

The 12mm Cable Duct Rodder with Wheel 200M features a heavy-duty wheeled frame that allows for easy transportation and deployment on job sites. Its 200-meter length makes it ideal for long-distance cable installations, including fiber optic, electrical, networking, and telecommunications projects.
Technical Specifications
| Feature | Specification |
|---|---|
| Product Type | Cable Duct Rodder |
| Rod Diameter | 12mm |
| Rod Length | 200M |
| Rod Material | Fiberglass |
| Outer Coating | High-Density Polyethylene |
| Frame Type | Wheeled Steel Reel |
| Wheel Configuration | Integrated Transport Wheels |
| Tensile Strength | High |
| Corrosion Resistance | Yes |
| Flexibility | Suitable for Curved Ducts |
| Operating Environment | Indoor and Outdoor |
| Application | Cable Pulling and Cable Guidance |
| Compatible Cables | Fiber Optic, Electrical, Network, and Telecommunications Cables |
Specifications may vary depending on the manufacturer and model.
Key Features
- 200-meter cable-pulling capacity
- 12mm heavy-duty fiberglass rod
- Integrated wheels for easy transportation
- High tensile strength
- Durable polyethylene coating
- Corrosion-resistant construction
- Excellent flexibility for navigating bends
- Heavy-duty steel frame
- Suitable for underground cable installations
- Designed for professional use
Applications
- Fiber optic cable installation
- Telecommunications projects
- Electrical cable installation
- Underground conduit systems
- Utility maintenance
Specifacation | Rod diameter(mm) | 4mm-18mm |
Rod length(mm) | 10m-500m | |
Frame Spec.(mm) | 1300*450*1330,1200*420*1220,980*350*1000mm, 680*240*700mm, etc | |
wheel diameter(mm) | 300mm | |
wall thickness of matel frame | 2.2mm | |
Color | blue, yellow, red, white, orange. and so on | |
Material | Rod inner | Extruded by fiber glass and high strength resin at high temperature |
Rod outer | High density polyethylene coating | |
Iron Frame | Steel with high temperature sprayed plastic or spray coating | |
wheel | rubber | |
Brake | yes | |
Drawing head | copper | |
Physical Characters | Density | 55g/m |
Working temperature | -40°C to +80°C | |
Breaking tension | 100kg | |
Bending radius | 295mm | |
Technology | Pultrusion | |
Packing | inside | Plastic woven strip wind around the frame |
Outside | carton |
